AH28 Level 2 EV Charger

AH28 provides a high-quality and cost-effective EV charging station designed to offer full Mode 3 fast charging to any EV.

Input Rating: Nominal 200-240V AC single-phase
Output Rating: 7kW 32A; 9.6kW 40A; 11kW 50A
Internal RCD: 20mA CCID
Display: 2.8” LCD
Network Interface: Ethernet/ WiFi/ 4G smart internet connection
OCPP: Full OCPP 1.6J/ OCPP 2.0.1 support
ISO15118 Plug & Charge: Upgradable
Ingress Protection: IP55
Shipping Dimensions: 500 x 383 x 243 mm
Charging Interface: SAE J1772 Type-1

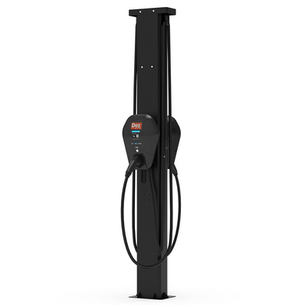

Mounting Type: Wall or Floor( pedestal supplied separately)

EV charger made for both residential and commercial. The AH28 is a smart, easy to install charger that allows you to add smart services and manage the charger remotely. SAE J1772 plug ensures compatibility with all electric vehicles and a seamless charging experience.

Main Features:

Compatible with all EVs and power grids
Up to 32A, 40A, 50A versions available
Streamlined design, simple and elegant appearance
2.8′ LCD display for easy and user-friendly operation
Unique installation design with independent backplate
Intelligent Ethernet, Cellular, WLAN Switching
Flexible output current/power configuration
Customizable breathing light
Smart dynamic load balancing support
User authentication via RFID or Mobile App
Multifunctional charger commissioning web portal
Remote control and monitoring

Easy Installation & Scalability

The AH28 has a unique installation design, making it easier than ever to install and maintain a charging infrastructure. It only requires the user to hang the charger on the backplate to complete the installation, which is convenient and fast to avoid expensive installation costs.

Built with scalability in mind, AH28 meets your needs today and in the future. It allows you to connect and prepare several charging stations, as well as manage an unlimited number of chargers on the same operator in CCMS.

Dynamic Load Balancing Support

Load balancing feature of AH28 makes it perfect for residential and commercial charging.

For residential use, it ensures that user can dynamically balance all the available electricity at home, including solar energy and battery systems, and the circuit would never be overloaded.

For commercial use, it ensure that everyone who charges can utilize all the electricity available in the parking facility, and at all times get the fastest and most optimal charging speed. This technology also means that more chargers can be easily connected to the system as the need arises.

OCPP Compliant & Reliable

Fully OCPP 1.6J and OCPP 2.0.1 profiles compliant, which means you can easily connect it to any 3rd party OCPP CCMS for remote monitoring and management. It’s always connected to the charging management system so you can monitor and manage your charging stations, update software remotely and secure revenue etc.

A1o Charger Hanging on a wall with OOCP 2.01 certification
